With all of the different updates and technologies in the security industry, it can be hard to differentiate between things like RFID cards and proximity cards.
To the average person, they look and function in a very similar way. However, there are key differences between the two that you should be aware of when choosing the right credential for your access control system.
In this simple guide, we break down everything you need to know about RFID cards vs proximity cards, including how they work, their pros and the 5 main differences.
What Are RFID Cards?
Radio Frequency Identification (RFID) cards are smart cards that use electromagnetic fields to identify and track data stored on a tag. The tag contains electronically stored information which can be read from up to several metres away, unlike traditional magnetic stripe or barcode systems which require line of sight.
RFID cards are used across a wide range of industries and applications, from access control and asset tracking to contactless payments and public transport.
How Do RFID Cards Work?
An RFID card contains a small microchip and an antenna. When the card enters the electromagnetic field generated by an RFID reader, the antenna picks up the signal and powers the microchip. The chip then transmits its stored data back to the reader.
The reader processes this information and sends it to the access control system, which determines whether the cardholder is authorised to enter.
RFID cards can operate at different frequencies:
- Low Frequency (LF): 120 - 150 kHz
- High Frequency (HF): 13.56 MHz
- Ultra-High Frequency (UHF): 860 - 960 MHz
The frequency determines the read range, data transfer speed and application suitability of the card.
What Are Proximity Cards?
Proximity cards (often called prox cards) are a type of contactless smart card that use Low Frequency (125 kHz) RFID technology to communicate with a reader.
They are one of the most common types of access control credentials and have been widely used in the security industry for decades. Proximity cards are typically credit card-sized and can be carried in a wallet, attached to a lanyard or clipped to a belt.
How Do Proximity Cards Work?
Proximity cards work in a similar way to RFID cards. They contain an antenna and a microchip. When the card is brought within range of a proximity card reader, the reader’s electromagnetic field powers the card’s antenna, which in turn activates the chip.
The chip transmits a unique identification number to the reader, which forwards it to the access control panel. The panel checks this number against its database and either grants or denies access.
The key distinction is that proximity cards operate exclusively at 125 kHz (Low Frequency) and typically have a read range of up to 15 cm, although some long-range proximity systems can read at greater distances.
Pros of RFID Cards
Skeleton Card
RFID cards can be used as a skeleton key of sorts. A single card can be programmed to grant access to multiple doors, areas and even buildings within an organisation. This eliminates the need for multiple physical keys and simplifies access management.
Flexibility
RFID technology operates across multiple frequency bands, giving organisations the flexibility to choose the right solution for their specific application. Whether you need short-range high-security access or long-range vehicle identification, there is an RFID frequency to match.
Secure
RFID cards, particularly those operating at High Frequency and above, support advanced encryption and authentication protocols. Technologies such as DESFire EV2 and EV3 offer multi-layered security, making it extremely difficult to clone or tamper with the card’s data.
Data Protection
Unlike basic proximity cards that only transmit a static ID number, RFID cards can store and process significantly more data. This data can be encrypted and protected using secure communication protocols, ensuring that sensitive information is not exposed during transmission.
Pros of Proximity Cards
Convenience
Proximity cards are incredibly simple to use. There is no need to insert the card into a reader or align it in any particular way. The user simply holds the card near the reader and access is granted within a fraction of a second.
No Learning Curve
Due to their simplicity, proximity cards require virtually no training for end users. Anyone can use a proximity card straight away, making them an excellent choice for environments with high staff turnover or visitor access requirements.
Saves Codes
With proximity cards, there is no need for users to remember PIN codes or passwords. The card itself serves as the credential, which reduces the likelihood of access being denied due to forgotten codes and eliminates the security risk of written-down PINs.
Low Maintenance
Proximity cards have no battery, no moving parts and are built to withstand daily wear and tear. They are durable, long-lasting and require very little maintenance over their lifespan.

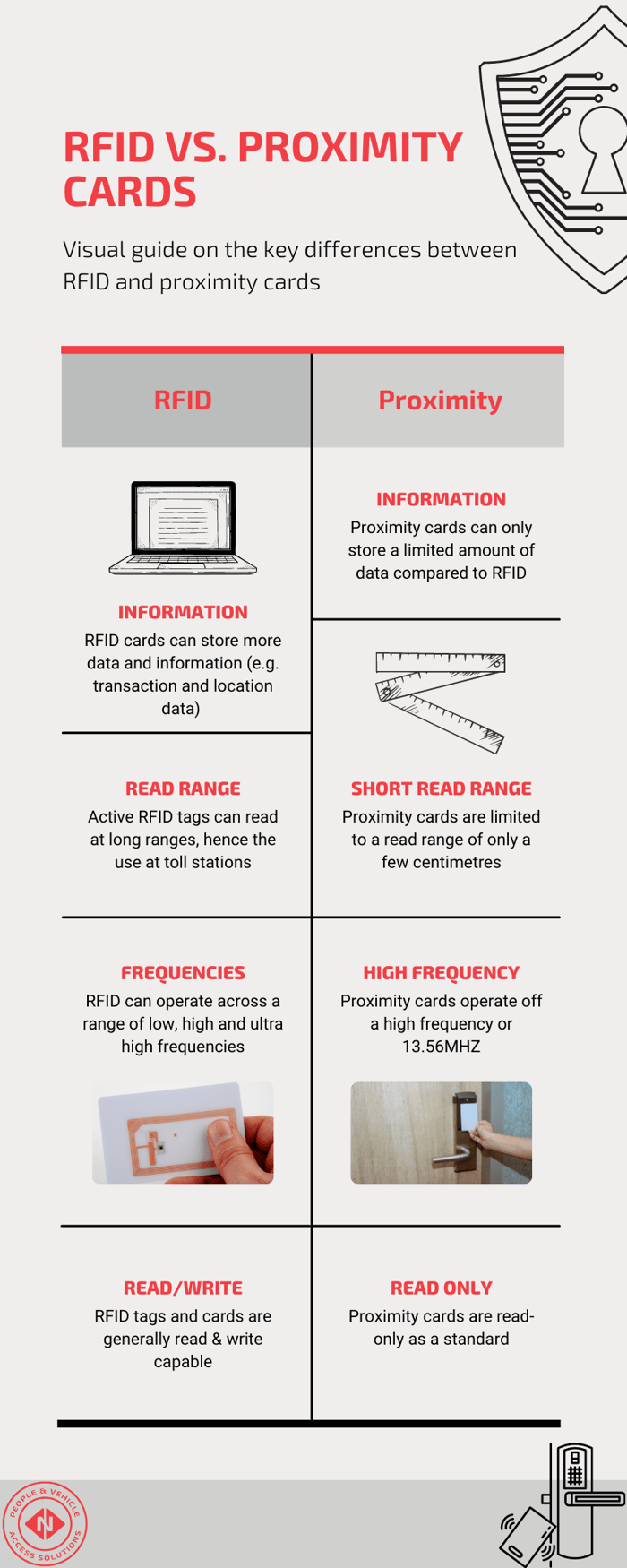

5 Main Differences Between RFID Cards and Proximity Cards
1. Read Range
RFID cards can operate at various frequencies, giving them a wide range of read distances. Low Frequency RFID cards have a similar range to proximity cards, but High Frequency and Ultra-High Frequency RFID cards can be read from several metres away.
Proximity cards operate exclusively at 125 kHz and typically have a read range of up to 15 cm. While some enhanced proximity systems can extend this range, they cannot match the distances achievable with higher-frequency RFID technology.
2. Information Stored
RFID cards can store significantly more data than proximity cards. Depending on the type of chip used, an RFID card can hold multiple applications, biometric data, access credentials and other information. This makes them suitable for multi-application environments where a single card serves multiple purposes.
Proximity cards typically store only a static identification number. This number is transmitted to the reader each time the card is presented. The limited storage capacity means proximity cards are generally restricted to a single function: access control.
3. Operational Frequencies
RFID cards operate across a spectrum of frequencies, including Low Frequency (125 kHz), High Frequency (13.56 MHz) and Ultra-High Frequency (860 - 960 MHz). Each frequency band has different characteristics in terms of range, data transfer speed and environmental performance.
Proximity cards operate at a single frequency: 125 kHz (Low Frequency). This limits their capabilities compared to multi-frequency RFID cards but also keeps the technology simple and cost-effective.
4. Read/Write Capabilities
RFID cards, particularly those using High Frequency and UHF technology, support both read and write operations. This means data can be added to or updated on the card after it has been issued. This capability is essential for applications such as cashless vending, time and attendance logging and dynamic credential management.
Proximity cards are read-only devices. The identification number is programmed onto the card during manufacturing and cannot be changed. While this simplicity is an advantage in some respects, it limits the card’s versatility.
5. Line of Sight
RFID cards do not require a direct line of sight between the card and the reader. The radio frequency signal can pass through materials such as clothing, wallets and bags. This is particularly beneficial for hands-free access applications where users may keep their card in a pocket or bag.
Proximity cards also do not require line of sight, as they use the same fundamental RF technology. However, their shorter range means the card must be closer to the reader, which can sometimes be confused with a line-of-sight requirement.
Summary
Both RFID cards and proximity cards play an important role in the access control industry. Proximity cards have been the backbone of physical access control for decades and continue to offer a reliable, cost-effective solution for many applications.
However, as security requirements become more demanding and organisations look for more versatile credential solutions, RFID cards, particularly those using High Frequency and UHF technology, are becoming the preferred choice.
| Feature | RFID Cards | Proximity Cards |
|---|---|---|
| Frequency | LF, HF, UHF | LF (125 kHz) only |
| Read Range | Up to 10+ metres (UHF) | Up to 15 cm |
| Data Storage | High (multi-application) | Low (static ID only) |
| Read/Write | Yes | Read only |
| Encryption | Advanced (DESFire, etc.) | Basic or none |
When choosing between RFID cards and proximity cards, consider your specific security requirements, read range needs, budget and whether you need multi-application functionality. You may also want to understand how smart card readers interface with these different credential types, or explore the differences between proximity cards and key fobs.
For organisations looking to future-proof their access control system, investing in RFID technology offers greater flexibility, enhanced security and the ability to scale as requirements evolve. To learn more about how RFID access control works, explore our dedicated guide.
